Heavy Harry

H.22

Heavy Harry

H.28

Heavy Harry

H.35

Version

Exploded view

Information

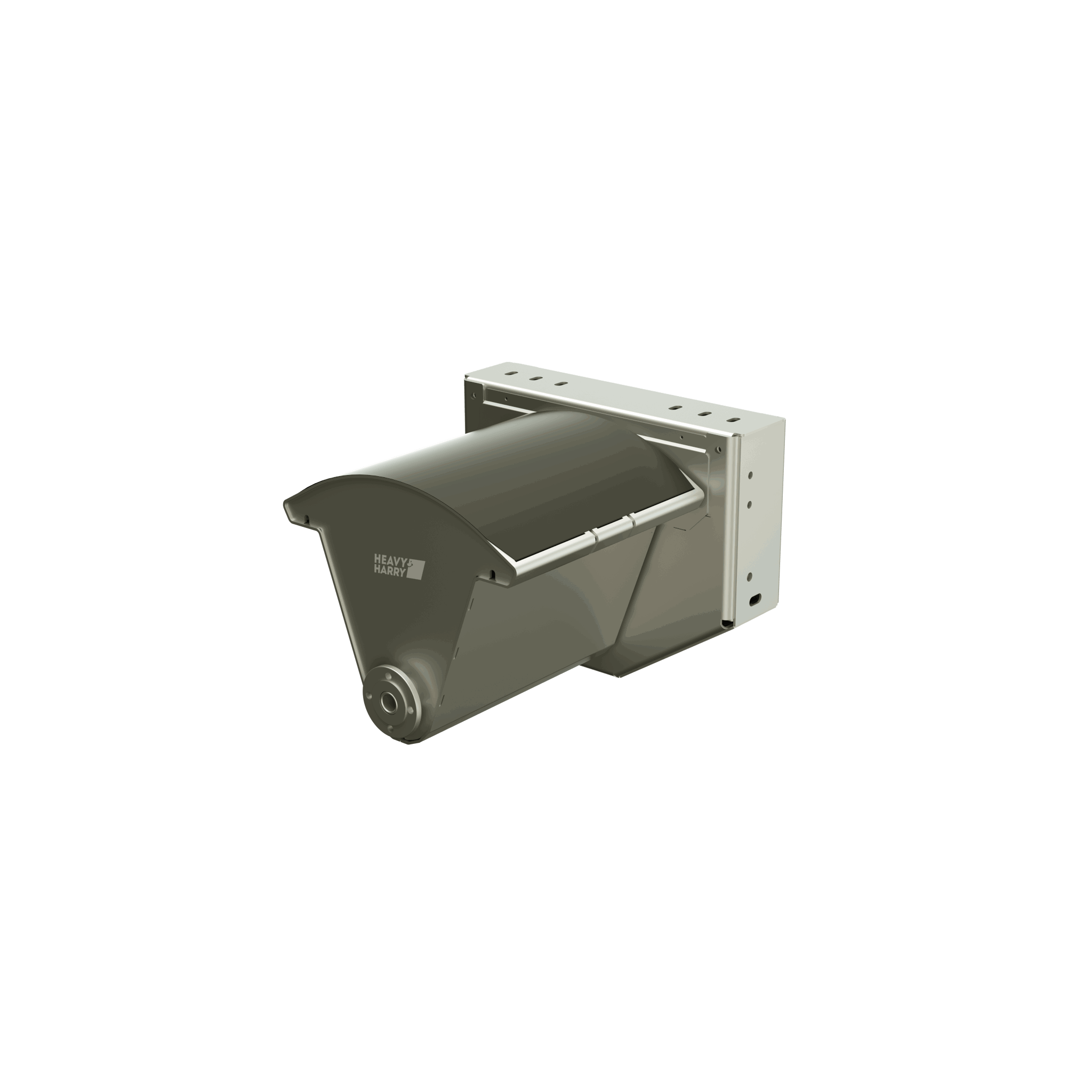

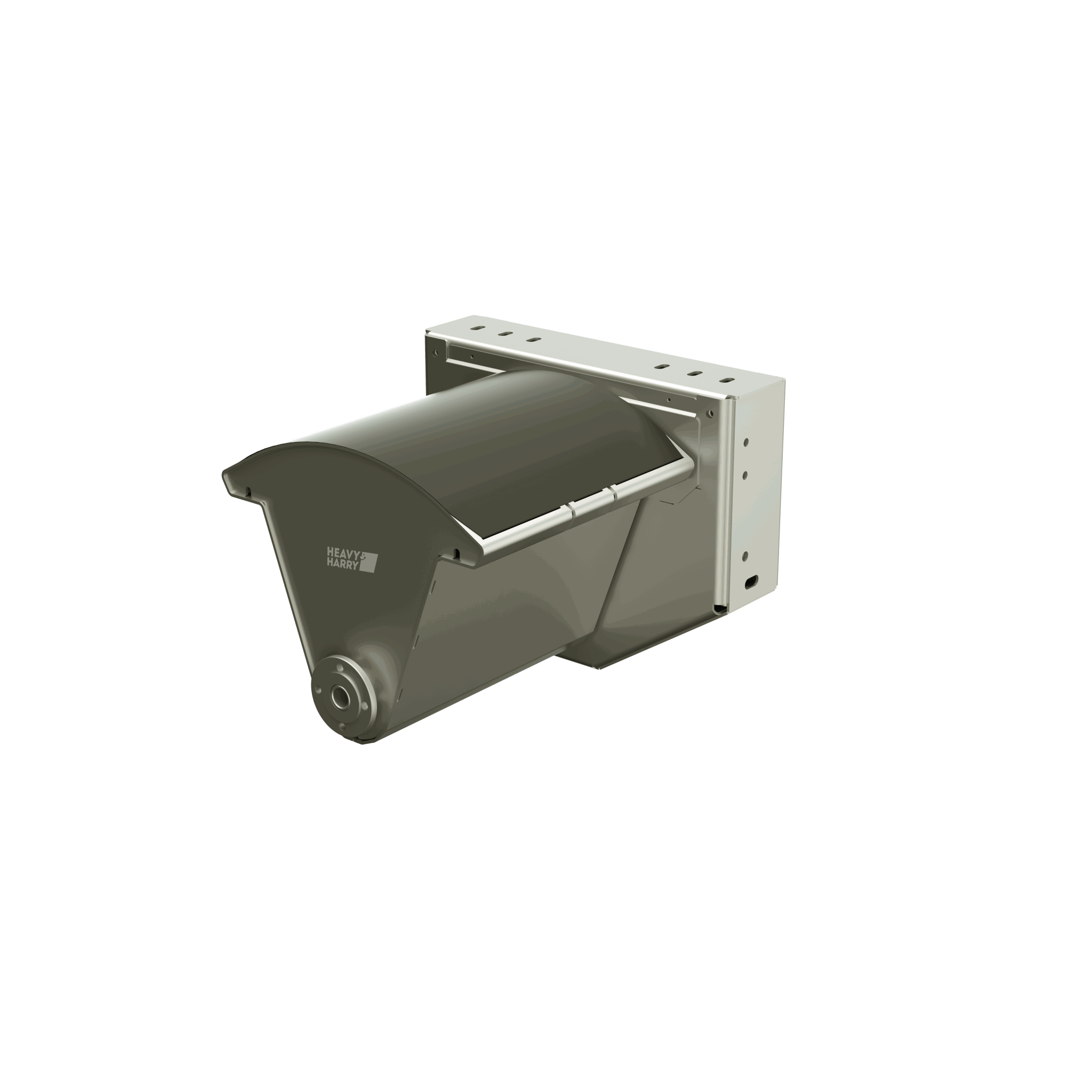

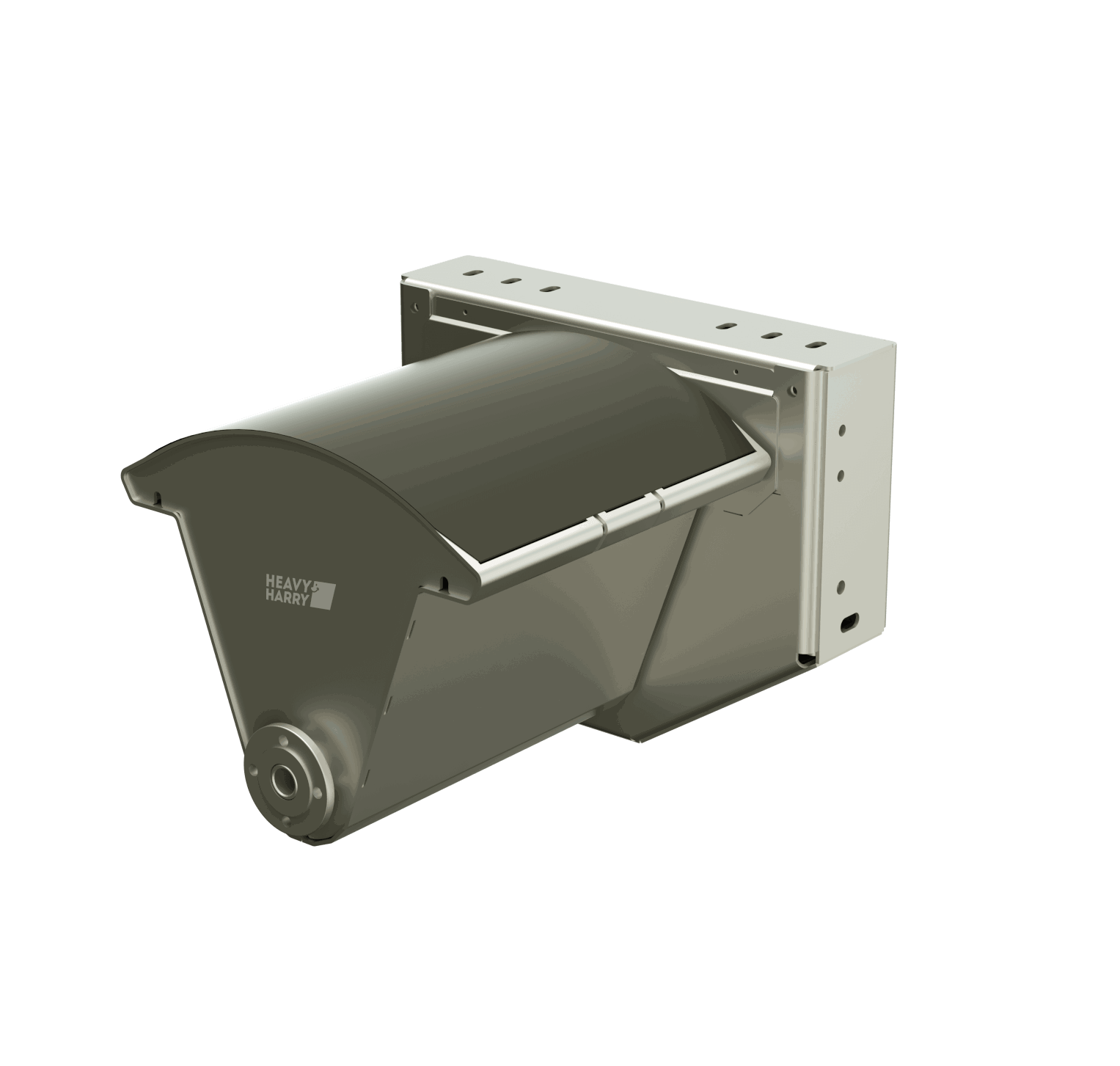

Heavy Harry, our underground compactor, can be installed in both new and existing underground containers. The compactor is simple and can be charged wirelessly thanks to 230V induction. By upgrading an underground container, it can process 3-7 times more waste in the underground container.

By connecting Heavy Harry to our ‘Smart City Manager’ platform, you can see exactly when the container is full. If you connect Heavy Harrys to each other, the driver automatically receives a suggested route to empty the modules as efficiently as possible.

Technical data

H.22

Compactor force

2200 kg

Compaction

1/3 of initial size (residual waste)

Compaction

1/5 of initial size (plastic)

H.28

Compactor force

2800 kg

Compaction

1/4 of initial size (residual waste)

Compaction

1/6 of initial size (plastic)

H.35

Compactor force

3500 kg

Compaction

1/5 of initial size (residual waste)

Compaction

1/7 of initial size (plastic)

Standard options

H.22

  • Charge wirelessly 230V (induction)
  • Fits in new and existing underground containers

H.28

  • Communicates with the Smart City Manager platform
  • Extremely high compactor force

H.35

  • Lithium battery
  • Electro-hydraulic actuator

Extra options

  • Child fall protection
  • Weight module (weigh waste)
  • Child fall protection
  • Weight module (weigh waste)
  • Child fall protection
  • Weight module (weigh waste)
